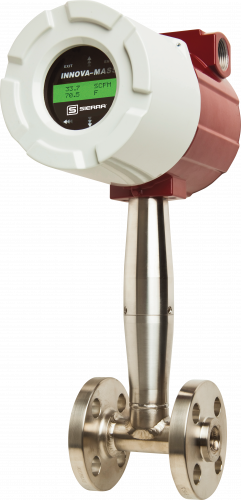

Innova-Mass® Model 240 VTP (Multivariable Vortex Meter)
In-line Multivariable Mass Vortex Flow Meters
Read five process variables with a single installed device!
Our Innova-Mass® Model 240 provides a direct reading of mass flow rate from a single entry point in the process line and provides analog and digital outputs of five process variables: mass flow rate, volumetric flow rate, temperature, pressure, and fluid density. The ability to sense all process conditions in a single location greatly improves measurement accuracy and eliminates the costly requirement for additional line penetrations associated with traditional mass flow measurement systems.
Click to download a zipped innova sizing program (Please note extended download time required)
|
The sophisticated on-board flow computer also incorporates AGA-8 algorithms for natural gas measurement to reduce billing and contract disputes. Smart electronics provide access to all measured variables and programming menus, and permit field-configuration directly from the control panel or workstation via RS485, MODBUS or HART protocols. Product accuracy is ± 1% of rate for liquids and 1.5% of rate for gases and steam over a 30:1 range. The Model 240 is hazardous area approved by FM, CSA, ATEX and CE. |
|
