Clamp-On Ultrasonic Portable Flow Meter - InnovaSonic 210

Portable Clamp-On Ultrasonic Flow Meter for High Accuracy Liquid Metering

InnovaSonic® 210 Ultrasonic Portable Flow Meter

Easy setup in five minutes or less
Portable clamp-on transducers measure liquid flows nearly anywhere
Save time with no pipe cutting or process shutdown
Boiler MACT certified for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD) Learn More

Overview

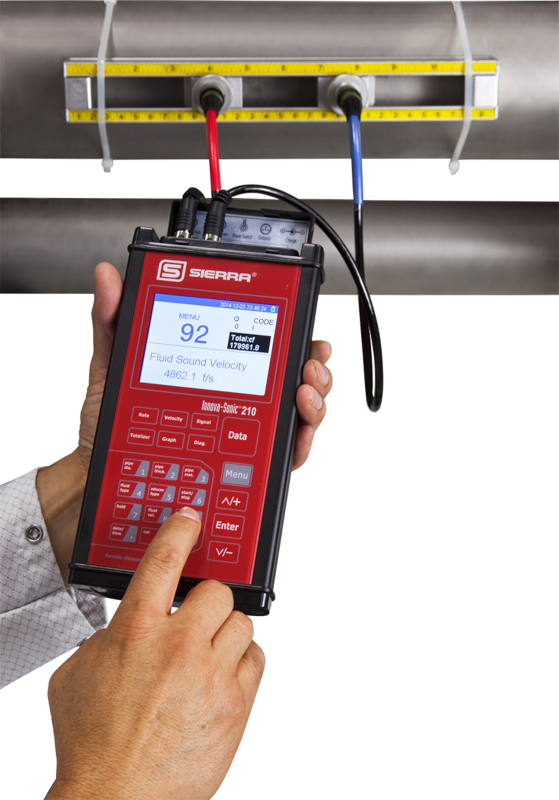

The InnovaSonic® 210 portable ultrasonic flow meter succeeds at delivering expanded functionality and field portability when a permanent installation is not required. The 210 is a complete liquid measurement kit with portable clamp-on transducers featuring a small handheld display interface with bright color display and push buttons. While principally designed for clean liquids, the 210 portable meter will operate effectively with the minimal quantity of air bubbles or suspended solids found in most industrial applications. Its high-powered ultrasonic pulse with improved digital signal processing requires just one set of transducers for a wide range of pipe sizes and materials including metal, plastic and concrete.

The handheld battery powered 210 is ideal for precisely measuring a wide range of liquid flows in pipes up to 236 inches (6000 mm).

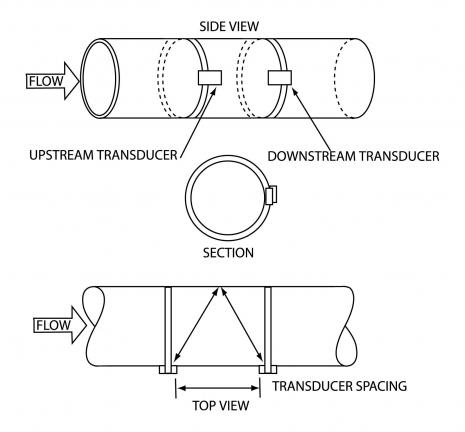

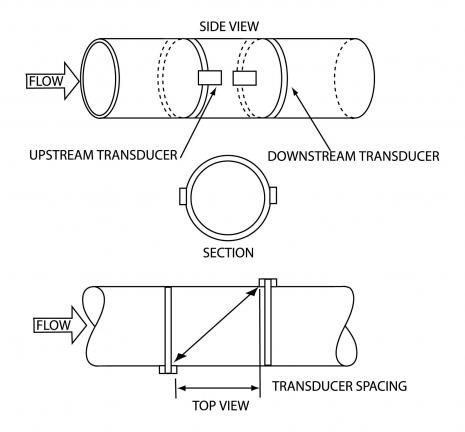

Utilizing universal transit-time technology the 210 portable flow meter, hand-held flow meter measures the time it takes an ultrasonic signal to travel a known distance with the flow stream and another signal travelling against the flow stream, determining the velocity of the fluid being measured. The 210 measurement is independent of fluid conductivity to allow a wider applicability compared to magnetic meters.

Common Applications:

Cooling and heating fluid measurements
Water and wastewater measurements
Leak detection in piping systems
Monitoring and controlling of HVAC systems
Fuel and oil consumption measurements

Checking other flow meters
Flow and usage audits
Interface detection
Offshore applications
Automated process control

Performance

While principally designed for clean liquids, the 210 portable meter will operate effectively with the minimal quantity of air bubbles or suspended solids found in most industrial applications. Its high-powered ultrasonic pulse with improved digital signal processing requires just one set of transducers for a wide range of pipe sizes and materials including metal, plastic and concrete.

The 210:

Uses universal transit-time digital signal processing to offer excellent accuracy and repeatability for a wide variety of liquids
Determines the velocity of the fluid by measuring the time it takes an ultrasonic signal to travel a known distance with the flow stream, and another signal travelling against the flow stream
Features measurement that is independent of fluid conductivity to allow a wider applicability compared to magnetic meters

In addition, a programmable frequency output and VAC power emulates turbine/propeller meters for easy replacement or decommissioning of older technology flow devices.

Product Benefits

Setup in five minutes or less
Designed to make it easy to take liquid flow measurements in the field
Fully field-portable, lightweight, and totally self-contained package
Tolerant of liquids with small amounts of air bubbles or suspended solids

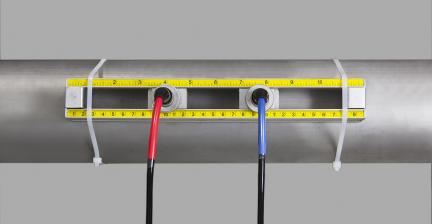

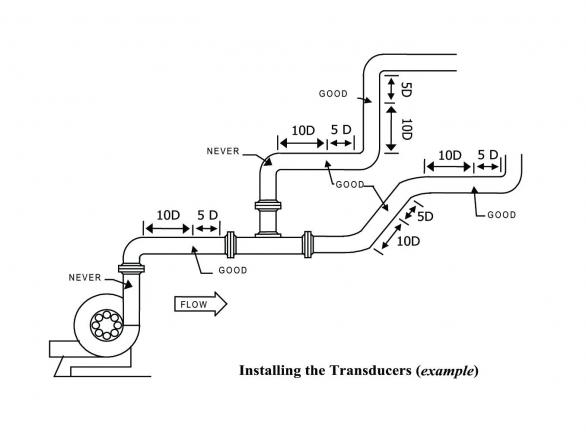

Magnetic transducer racks, slipscale gage for easy installation
Chain straps included for nonmagnetic pipe
Clamp-on standard, insertion transducers available
No moving parts to clog or fatigue like turbine meters
Transducers clamped to outside of pipe
Immune to the process compatibility concerns
Install meter during plant operations
No process shut-downs, no leakage risks
Operational safety and robustness
Ideal for large line sizes or exotic materials
Low maintenance, no moving parts, robust construction
High zero stability, nearly drift free
Mounting kit included to lock transducer into place
Modular electronics enabling field upgrades
SD card data logging capability

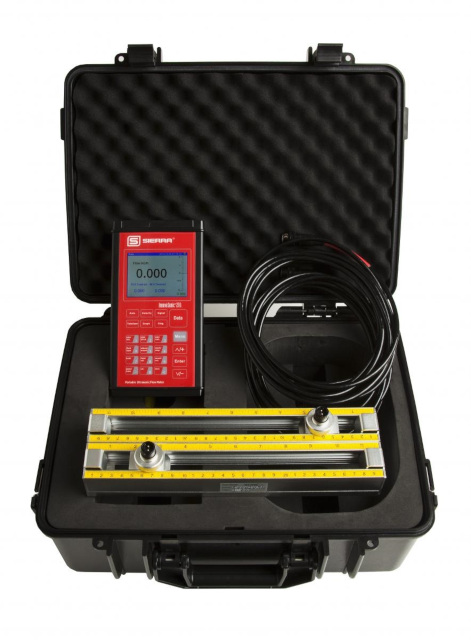

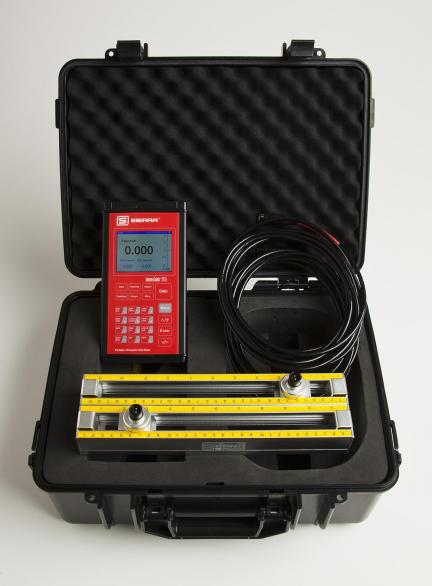

Convenient pelican-type carrying case
11.1 VDC lithium-ion battery for up to 10 hours of continuous use (power plug available)

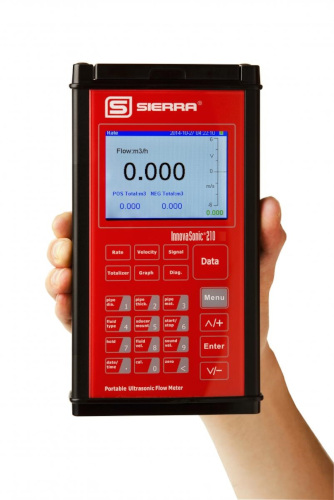

Large display with pushbuttons, user-friendly menu
Display allows graphical datalogging
Quick key buttons for:
- Flow rate
- Totalized flow
- Velocity
- Fluid
- Signal and diagnostics
- Graphing
Transducers are matched pair and temperature compensated
Field validation/configuration to ensure operating performance
Daily, monthly and yearly totalized flow rate
Positive, negative and net flow totalizers (with user selectable scale factors)
Configurable pulse, analog and frequency outputs
Fully field configurable
Certified for Boiler MACT measurement meeting EPA regulations for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD) Learn More.

Specifications

Accuracy: +/- 0.5% of reading from 0.16 to 40 ft/s ( 0.05 to 12 m/s)
Repeatability: +/- 0.3% of full scale
Turndown: 30:1
Bi-directional flow range of 0.16 to 40 ft/s (0.05 to 12 m/s)
Pipe sizes from 2 to 236 inches (50.8 to 6000 mm)
Process pipe-wall temperature: -40°F to 176°F (-40°C to 80°C)
8 GB SD card memory
High-capacity data logging; 7 days maximum per recording session; 65,536 sessions
Temperature:
- Ambient: 14°F to 122°F (-10°C to 50°C)
- Operating: -40°F to 176°F (-40°C to 80°C)

View All Specs

Tactile entry keys and 64 x 128 alphanumeric backlit LCD display
Power supply: 11.1 VDC rechargeable lithium-ion battery (operation for up to10 hours)
Output signals: 4 to 20 mA
Materials:
- Enclosure NEMA 13 (IP54)
- Transducers IP68 (Encapsulated)
Standard cable length: 16 ft (5 m), Maximum cable length: 100 ft (30 m)
Weight:
- Handheld transmitter: 1.4 lbs (.6 kg)
- Transducers: 1 lb each (.4 kg each)
