Vortex Flow Meters

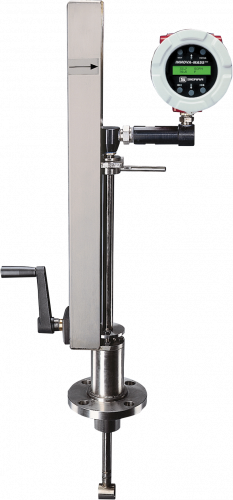

InnovaMass^® 241S Insertion

Insertion probe for pipes and ducts up to 72 inches (2M); Optional hot tap - no process shutdown
Ideal for saturated or superheated steam, gas, and liquid
Volumetric flow rate or mass flow
Multivariable for five measurements in one device
Energy (BTU) Monitoring for real-time monitoring of energy consumption
Highly reliable with no moving parts
Loop power option available
Rugged, long-lasting design for the industrial applications

Overview

Sierra was the first to introduce multivariable mass vortex flow meters to the market in the late 1990s with the InnovaMass "S-Series" product line-the 240S and 241S. The InnovaMass 241S inline version is a true workhorse in applications ranging from large pipes and ducts, to high pressure and saturated or superheated steam. The InnovaMass 241S is manufactured as a volumetric only version or a multivariable version.

View Vortex Flow Meter Sizing Program

Mass or volumetric flow monitoring of gases, liquids or steam
Ideal for pipes and ducts up to 72 inches (2M).
Measures five process variables with one process connection
- Mass flow rate
- Volumetric flow rate
- Temperature
- Pressure
- Fluid density
Low-cost alternative to Coriolis meters for large pipes and ducts
Easy single-point installation; hot tap and hot tap retractor available
Sensors located behind bluff body are well protected from pressure shocks and water hammer
Large LCD display and pushbutton interface; remote enclosure mounting available
Display of simultaneous total flow rates and process diagnosis

Loop-powered design simplifies wiring and signal processing
Mass flow equations - real gas, ideal gas, and AGA-8 algorithms for natural gas
Optional BTU measurement for steam and water
Fully field configurable
Rangeable down to Reynold's number of 5000
Precision platinum RTD
Complex density calculations performed without need for separate flow computer
Field validation/configuration to assure operating performance
Flow totalizer and alarms
Energy (BTU) Monitoring for real-time monitoring of energy consumption; compute and output energy use

Specifications

Fluids measured: steam, gases and liquids
Up to 72 inches (2 m) available;
Pipe sizes from 0.5 to 8 inches (1.3 to 20.3 cm); See 240S
Accuracy:
- Mass flow: +/- 1% of reading (liquids); +/- 2% of reading (gas & steam)
- Volumetric: +/- 1.2% of reading (liquids); +/- 1.5% of reading (gas & steam)
Repeatability:
- Mass flow rate: +/- 0.2% of full scale
  Volumetric flow rate: +/- 0.1% of scale
  Temperature: +/- 0.2°F (+/- 0.1°C)
  Pressure: +/- 0.05% of full scale
  Density: +/- 0.1% of full scale
Rangeability up to 100:1 (accuracy maintained across entire range)
Process fluid temperature:
- Standard: -330°F to 500°F (-200°C to 260°C)
- High temperature (HT): up to 750°F (400°C)
Ambient temperature:
- Operating: -5°F to 140°F (-20° to 60°C)
  Storage: -40°F to 150°F (-40° to 65°C) 0 to 98% relative humidity, noncondensing conditions

Process pressure:
- Standard: up to 1500 psia (100 bara)
- High pressure to 5000 psig (345 barg)
Response time is adjustable from 1 to 100 seconds
Power supply options:
- 12 to 36 VDC, 100 mA (add 20 mA per output up to 60 mA)
- 100 to 240 VAC, 50/60 Hz, 25 watts
- Active loop, loop powered with 4 to 20ma output
316 stainless steel construction (other materials available)
Output signals:
- 3 programmable 4 to 20 mA
- User definable pulse output for totalized flow
Hazardous-Area Location Enclosure (IP66) and NEMA 4X (IP65)
Digital communications: RS-485, Modbus RTU, HART (with DD), BACnet
Ethernet available for Modbus and BACnet
Approvals:
- FM
- FMC
- CSA
- ATEX
- IECEx
- CE
