Portable Clamp-On Ultrasonic Flow Meter for High Accuracy Liquid Metering

• Setup in five minutes or less
• Designed to make it easy to take liquid flow measurements in the field
• Fully field-portable, lightweight, and totally self-contained package
• Tolerant of liquids with small amounts of air bubbles or suspended solids

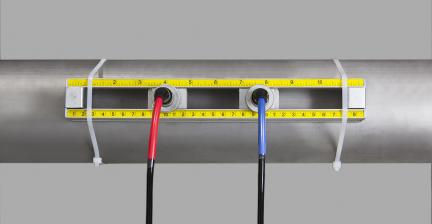

• Magnetic transducer racks, slipscale gage for easy installation
• Chain straps included for nonmagnetic pipe
• Clamp-on standard, insertion transducers available
• No moving parts to clog or fatigue like turbine meters

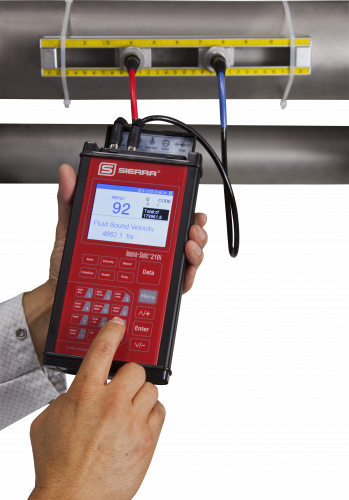

• Transducers clamped to outside of pipe
• Immune to the process compatibility concerns
• Install meter during plant operations
• No process shut-downs, no leakage risks
• Operational safety and robustness
• Ideal for large line sizes or exotic materials
• Low maintenance, no moving parts, robust construction
• High zero stability, nearly drift free
• Mounting kit included to lock transducer into place
• Modular electronics enabling field upgrades
• SD card data logging capability

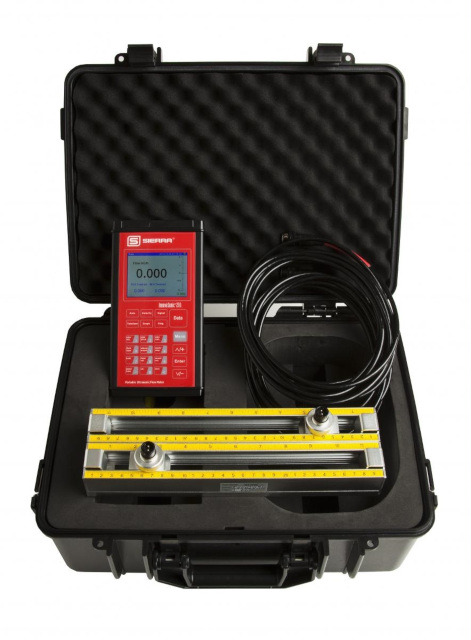

• Convenient pelican-type carrying case
• Lithium-ion battery for up to 10 hours of continuous use (power plug available)
• Large display with pushbuttons, user-friendly menu
• Display allows graphical data logging
• Quick key buttons for:
  • Flow rate, totalized flow
  • Velocity
  • Fluid
  • Signal and diagnostics
  • Graphing
• Transducers are matched pair and temperature compensated
• Field validation/configuration to ensure operating performance
• Daily, monthly and yearly totalized flow rate
• Positive, negative and net flow totalizers (with user selectable scale factors)
• Configurable pulse, analog and frequency outputs
• Fully field configurable

• Accuracy +/- 1.0% of reading from 1.6 to 40 ft/s ( 0.49 to 12 m/s)
• Repeatability +/- 0.3% of full scale
• Wide turndown ratio
• Bi-directional flow range of 1.6 to 40 ft/s (0.49 to 12 m/s)
• Pipe sizes from 0.6 to 236 inches (15 to 6000 mm)
• Process pipe-wall temperature:  -40°F to 176°F (-40°C to 80°C)
• 1GB SD card memory
• High-capacity data logging (512 files max; interval 5 to 60 seconds)
• Temperature:
  • Ambient: 14°F to 122°F (-10°C to 50°C)
  • Operating: -40°F to 176°F (-40°C to 80°C)

View All Specs

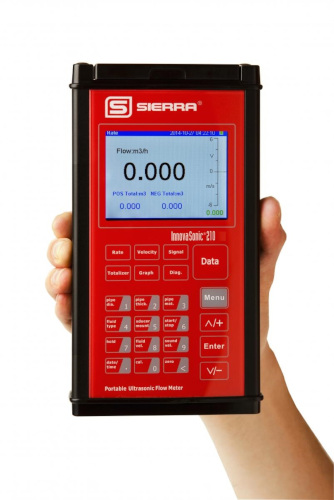

• Tactile entry keys and 64 x 128 alphanumeric backlit LCD display
• Power supply: 11 VDC rechargeable lithium-ion battery (operation for up to10 hours)
• Output signals: 4 to 20 mA
• Materials:
  • Enclosure NEMA 13 (IP54)
  • Transducers IP68 (Encapsulated)
• Standard cable length: 16 ft (5 m), Maximum cable length: 100 ft (30 m)
• Weight:
  • Handheld Transmitter: 1.4 lbs (.6 kg)
  • Transducers: 1 lb each (.4 kg)
