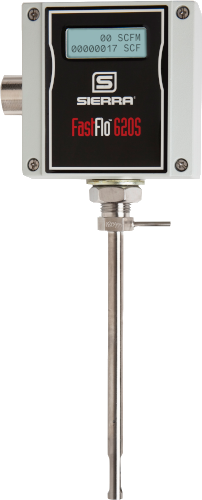

Fast-Response Insertion Thermal Mass Air Flow Sensor
FastFlo™ 620S
- Increase efficiency with fast response time within 200 milliseconds
- Optimized air, nitrogen, and inert gas measurement for 1, 2, 3, 4 inch sch. 40 pipe sizes
- Wide flow ranges from 0 to 42,000 scfh
- Easily install in the field or retrofit
Overview
The FastFlo™ 620S is an insertion thermal mass air flow sensor designed to give you a highly reliable, responsive and affordable mass flow measurement for light industrial applications where a NEMA 4X (IP65) enclosure is acceptable. This mass airflow sensor:
- Includes a compact, versatile, microprocessor-based transmitter
- Integrates flow-range adjustments, and meter validation and diagnostics
- Gives you the ability to "field-validate" your meter’s calibration
How does a thermal mass flow meter for industrial applications work? An insertion thermal mass air flow sensor provides precision measurement of total mass flow rate of gases flowing through closed conduits such as pipes and ducts. Thermal dispersion technology for direct mass flow measurement features: no pressure or temperature compensation needed, no moving parts, low pressure drop, and high turndown. Watch the Video
Product Benefits
|
|
Specifications
|
|
Documents & Downloads
Datasheets(2) | |||
Manuals(3) | |||
Software(1) | |||
Digital Communications - Flow Meter Digicom - Modbus RTU(3) | |||
| File Title | Version | Release Date | |
|---|---|---|---|
| 600/700 Series Modbus Instruction Manual | V1.1 | 05/06/2013 | |
600/700 Series Modbus Quick Install Guide | 47-0493-D | 01/06/2023 | |
| KepserverEx 4.0 Software for Use With MODBUS | 4.0 | 05/29/2014 | |
Certificates(13) | |||
Additional Documentation(6) | |||
