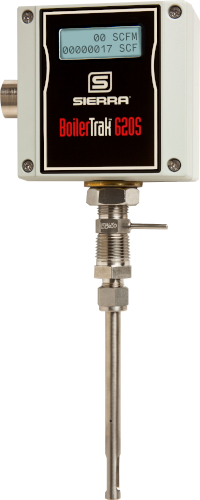

Insertion Thermal Mass Flow Meter for Boiler & Heater Efficiency
BoilerTrak™ 620S-BT
- Optimized natural and propane measurement for 1, 2, 3, 4 inch sch. 40 pipe sizes
- Wide flow ranges from 0 to 42,000 scfh
- Easily install in the field or retrofit
- Certified for GHG measurement meeting EPA (40 CFR Part 98)
- Boiler MACT certified for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD) Learn More.
Overview
BoilerTrak™ is designed to provide an economical, easy-to-install solution for precise natural gas measurement for heaters and boilers to increase efficiency. The thermal mass meter is also suited for compliance with new regulations for burning natural gas and propane in commercial boiler applications.
EPAs GHG & Boiler MACT Certified
The BoilerTrak insertion flow meter is also ideal for compliance for Boiler MACT regulations for inlet fuel measurements for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD). Learn More.
Developed as a fuel measurement solution for customers facing compliance to the California Global Warming Solutions Act of 2006, BoilerTrak™ meets all of the requirements for a stationary combustion fuel meter. This product is optimized for highly accurate and repeatable mass flow metering as mandated by the EPA, including:
- Methane (CH4)
- N20
- SF6
- HFCs
- PFCs
- CO2
Operating Principal: Thermal dispersion technology for direct mass flow measurement featuring: no pressure or temperature compensation needed, no moving parts, low pressure drop, high turndown. Watch the video...
Product Benefits
|
|
Specifications
|
|
Documents & Downloads
Datasheets(2) | |||
Manuals(3) | |||
Software(1) | |||
Digital Communications - Flow Meter Digicom - Modbus RTU(3) | |||
File Title | Version | Release Date | |
---|---|---|---|
600/700 Series Modbus Instruction Manual | V1.1 | 05/06/2013 | |
600/700 Series Modbus Quick Install Guide | 47-0493-D | 01/06/2023 | |
KepserverEx 4.0 Software for Use With MODBUS | 4.0 | 05/29/2014 | |
Certificates(11) | |||
Additional Documentation(7) |
