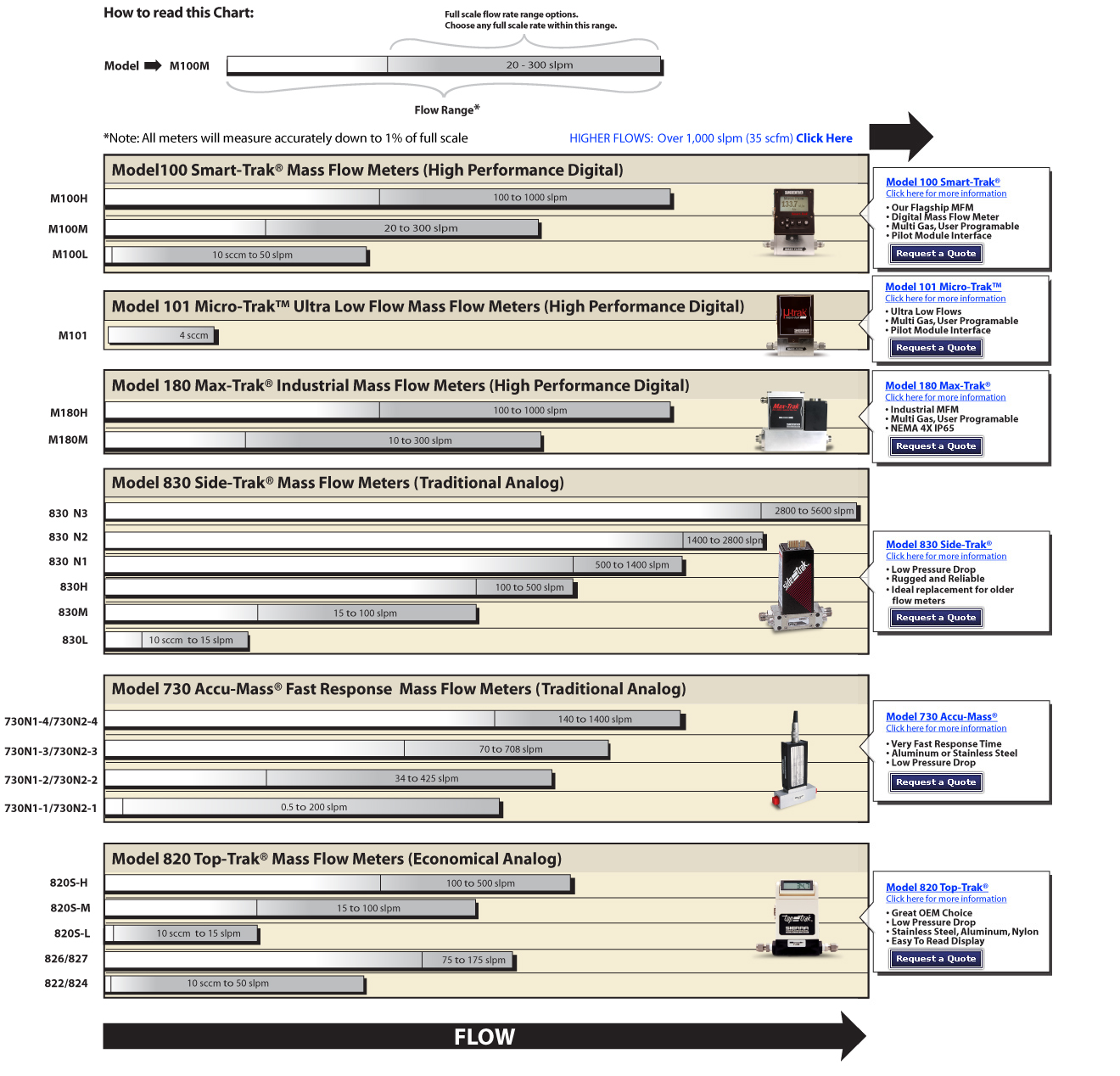

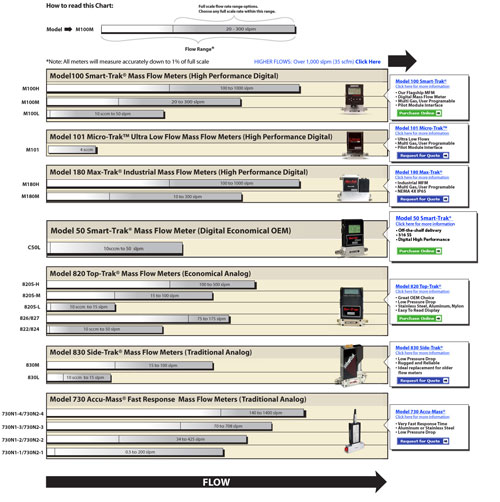

Flow Meter Selection Chart

Choosing the Right Scientific Flow Meter for Your Application

Selecting the right flow meter for your application doesn’t have to be difficult. With over 40 years of experience and 100,000 flow meters installed, Sierra has a line of accurate flow meters flexible enough to handle a variety of application conditions. These scientific meters are capable of measuring low flows (0 to 0.1 sccm), high flows (to 1000 slpm), corrosive gases, low pressure drop (4.5 psid), high pressure (up to 5000 psig). In addition, these capillary thermal meters feature multi-gas capability, a small footprint and easy systems integration. Watch Video.

Find the right flow meter for your application using the chart below.  Need to measure even higher gas flow rates? Sierra also manufactures industrial thermal mass flow meters.

How to read this chart
SmartTrak® 100 Mass Flow Meters (High Performance Digital)
SmartTrak 100
M100H

100 to 1000 slpm
M100M

20 to 300 slpm
M100L
10 sccm to 50 slpm


  • Our Flagship MFM
  • Digital Mass Flow Meter
  • Multi Gas, User Programmable
  • Pilot Module Interface



MicroTrak® 101 Ultra-Low Flow Mass Flow Meters (High Performance Digital)
MicroTrak 101
M101
0.1 sccm to 4 sccm


  • Ultra-Low Flows
  • Pilot Module Interface
  • Multi Gas, User Programmable

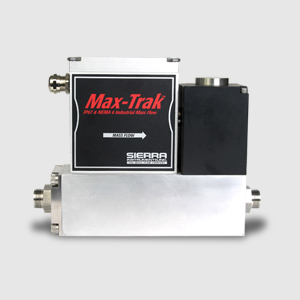

MaxTrak® 180 Industrial Mass Flow Meters (High Performance Digital)
MaxTrak 180
M180H

100 to 1000 slpm
M180M

10 to 300 slpm
  • Industrial MFC
  • NEMA 4X IP65
  • Multi Gas, User Programmable

SmartTrak® 50 Mass Flow Meter (Digital Economic OEM)
SmartTrak 50
C50L
10 sccm to 50 slpm


  • Off-the-Shelf Delivery
  • 316 SS
  • Digital High Performance
RedySmart™ Mass Flow Meter (MEMS OEM)
RedySmart GSM
M40L
.06 to .6 slpm


M40M1

.6 to 6 slpm
M40M2

6 to 64 slpm
M40M3

64 to 480 slpm
  • Ultra-stable
  • Modular
  • Modbus Digital Communication
  • Ideal for OEM
RedyCompact™Mass Flow Meter (MEMS OEM)
RedyCompact GCM
M30L
.06 to .6 slpm


M30M1

.6 to 6 slpm
M30M2

6 to 64 slpm
M30M3

64 to 480 slpm
  • Battery Powered
  • Touch-screen Display
  • Ultra-Stable
  • Ideal VA Meter Replacement

TopTrak® 820 Mass Flow Meters (Economical Analog)
TopTrak 820
820S-H

100 to 500 slpm
820S-M

15 to 100 slpm
820S-L
10 sccm to 15 slpm


826/827

75 to 175 slpm
822/824
10 sccm to 50 slpm


  • Great OEM Choice
  • Low Pressure Drop
  • Stainless Steel, Luminum Nylon
  • Easy to Read Display



Flow

NOTE: Graphs not to scale.

All controllers will measure and control accurately down to 2% of full scale
