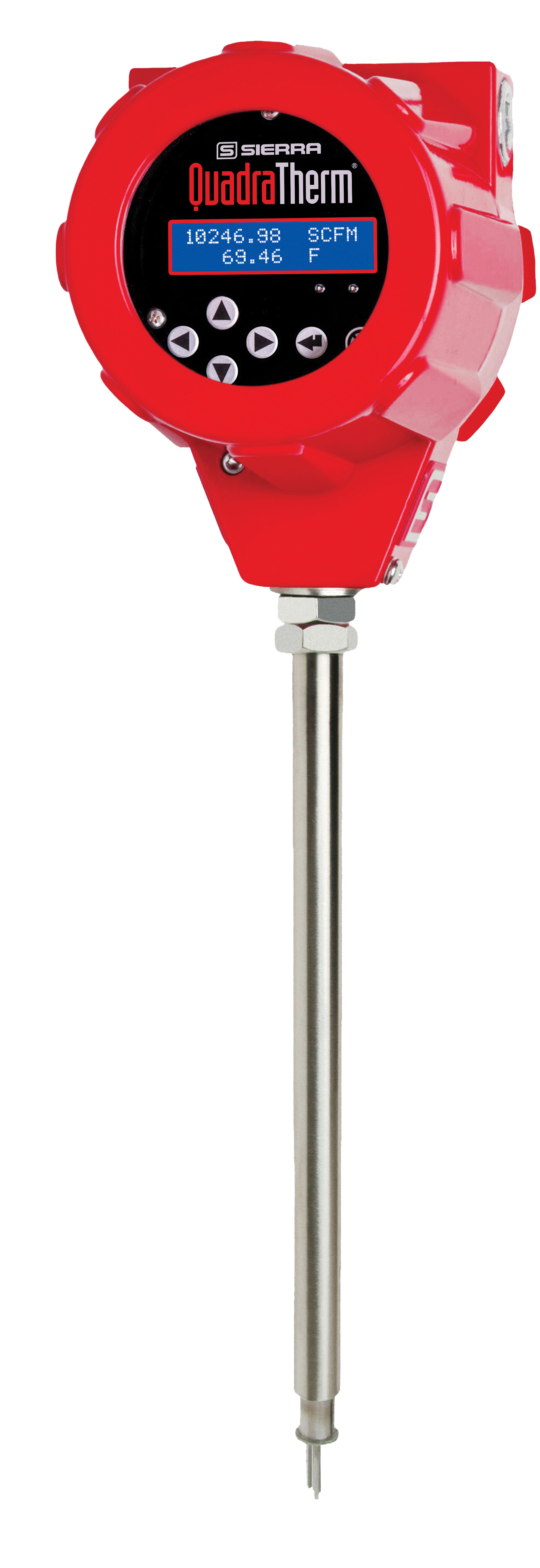

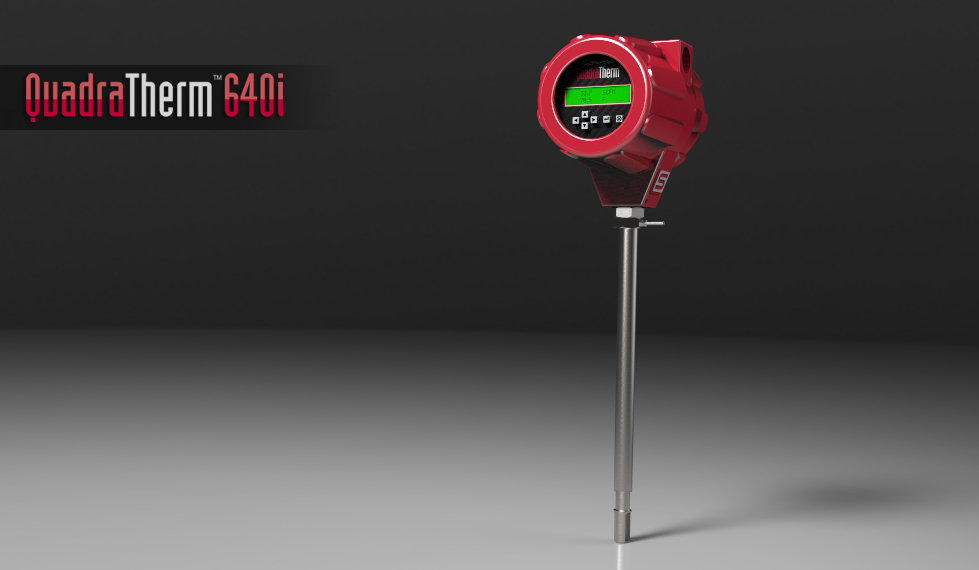

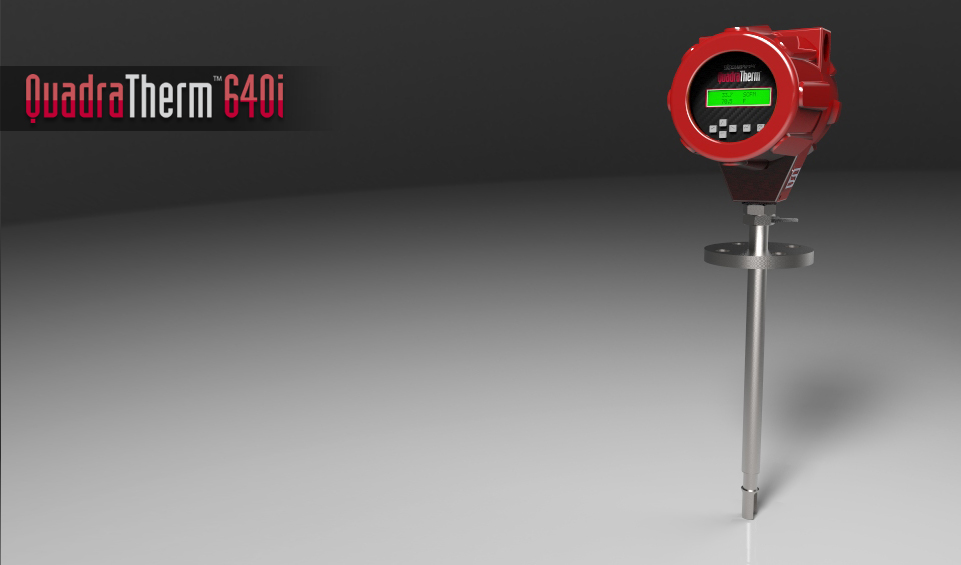

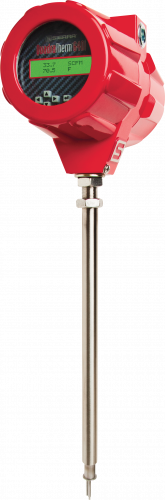

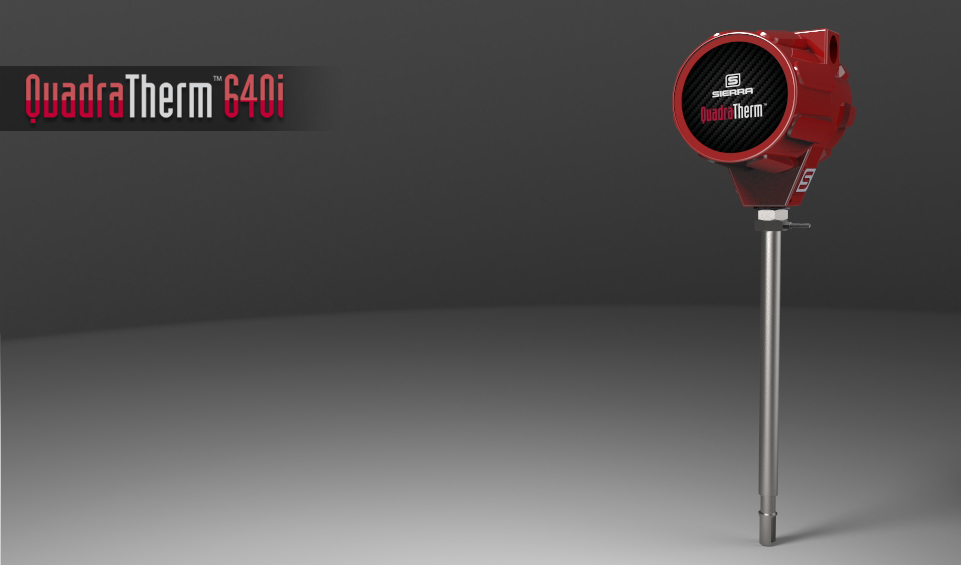

QuadraTherm^® 640i

Achieve high accuracy +/- 0.75% of reading
Eliminate drift with patented DrySense™ sensor
Validate in the field for easy in-situ calibration
Use qMix software to easily change gas composition in the field and retain accuracy Download Flare Gas Mass Measuring Tech Note
Backed by lifetime sensor warranty
Boiler MACT certified for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD) Learn more >
Part of Sierra's Big-3 iSeries family of flow meter technologies Learn more >
Meet EPA rule 40 CFR 63 for flare gas measurement at ultra-low flows down sfps (0.03 smps) with QuadraTherm^® qMix RealTime Flare Measurement System (FMS)

Overview

The QuadraTherm® 640i is the most accurate insertion-probe thermal mass flow meter for air / gas mass flow rate measurement on the market today, achieving gas mass flow rate accuracy never before possible, +/- 0.75% of reading above 50% of full scale. The QuadraTherm 640i air / gas mass flow meter marks an accuracy breakthrough in thermal dispersion technology achieving extreme precision with "percent of reading" accuracy, which for the first time rivals accuracies of Coriolis technology for measuring mass air flow rate and other gases.

Each QuadraTherm thermal flow meter comes with onboard qMix(tm) gas mixing software which allows you to create custom gas mixtures in the field to compensate for gas compositional changes-no costly recalibration needed. Perfect for managing changes in flare gas composition in the field for upstream oil & gas flare gas measuring applications and other applications in which gas composition frequently changes. Learn more. Sierra’s new breakthrough QuadraTherm® qMix RealTime Flare Measurement System (FMS) delivers real-time flare gas flow measurement to accurately measure flows down to 0.1 fps, meeting the full range of EPA regulations. Watch video.

Boiler MACT Certified

The QuadraTherm thermal mass meter is also ideal for compliance for Boiler MACT regulations for inlet fuel measurements for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD). Learn More.

The QuadraTherm air mass flow meter features a patented four-sensor design—three precision platinum temperature sensors and one patented DrySense mass velocity sensor. This allows for precision air and gas flow measurement. Available in either an insertion version or inline version, this mass flow meter includes Sierra’s proprietary Raptor OS operating system.

QuadraTherm’s four-sensor technology provides the critical inputs for Raptor's living, learning algorithm set and gas database that accurately manages changes in gas and pipe selection, gas temperature, gas pressure and outside temperature. Also easily change gas composition in the field while retaining accuracy with qMix software.

Mass Air Flow Meter Operating Principle: Thermal dispersion technology provides direct mass air flow measurement featuring no pressure or temperature compensation needed; no moving parts; low pressure drop; and high turndown.

Product Benefits

Patented breakthrough "quad" 4-sensor thermal sensor technology
Patented zero drift DrySense™ velocity sensor
Lifetime warranty on sensor
"Percent of reading" accuracy, which for the first time rivals Coriolis technology
Sierra's state-of-the-art ISO 9000 closed-loop calibration facility matches each application for best accuracy
Greenhouse Gas (GHG) certified to meet EPA (40 CFR Part 98)
Optimized (CH4) as well as N20, SF6, HFCs, PFCs and CO2, per the EPA mandate
Ideal for high-accuracy applications like custody transfer, wastewater treatment, hazardous areas, facilities management and general process control applications
Features our proprietary Raptor OS™ operating system (formerly known as qTherm)
ValidCal™ Diagnostics: field calibration validation and meter diagnostics to assure operating performance
Multivariable outputs - gas and air mass flow rate, temperature and pressure
Total of four gases onboard; Capability to change gas (Dial-A-Gas®) in the field
Free qMix™ software to create custom gases or mixtures to compensate for compositional changes; upload mixtures to the unit in the field
Capability to change pipe size (Dial-A-Pipe®) in the field

Unique multi-gas flow totalizer and alarmsHigh flows up to 60,000 sfpm (305 smps)

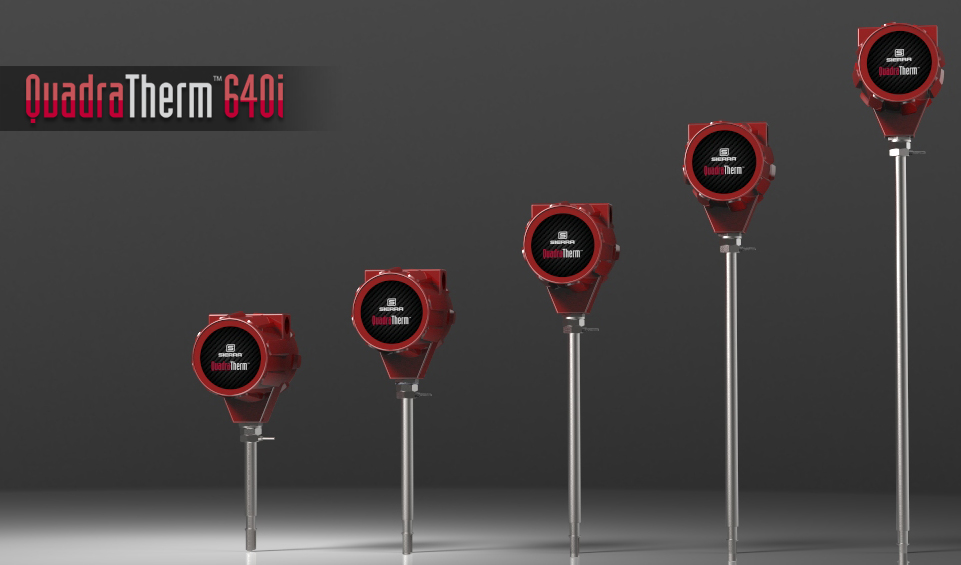

Small-diameter, 3/4-inch (19.1 mm) sensor probe
Pipe/duct sizes up to 72" (2M)
Low and high pressure hot tap
An inline flow conditioned version is also available - Model 780i
Very low pressure drop
No moving parts
Free computer interface software
Connected to the most up-to-date gases in our proprietary Raptor Gas Library, update the instrument via the web

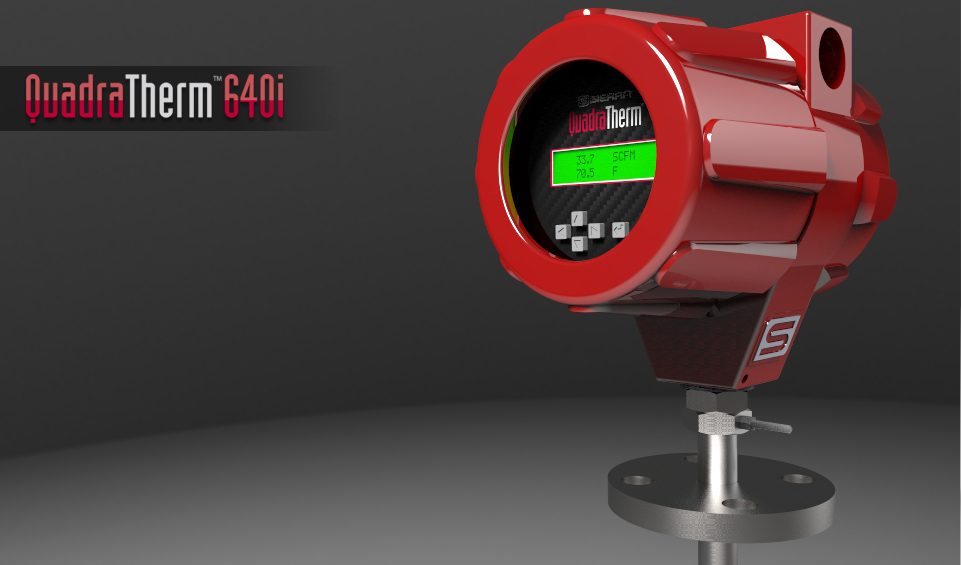

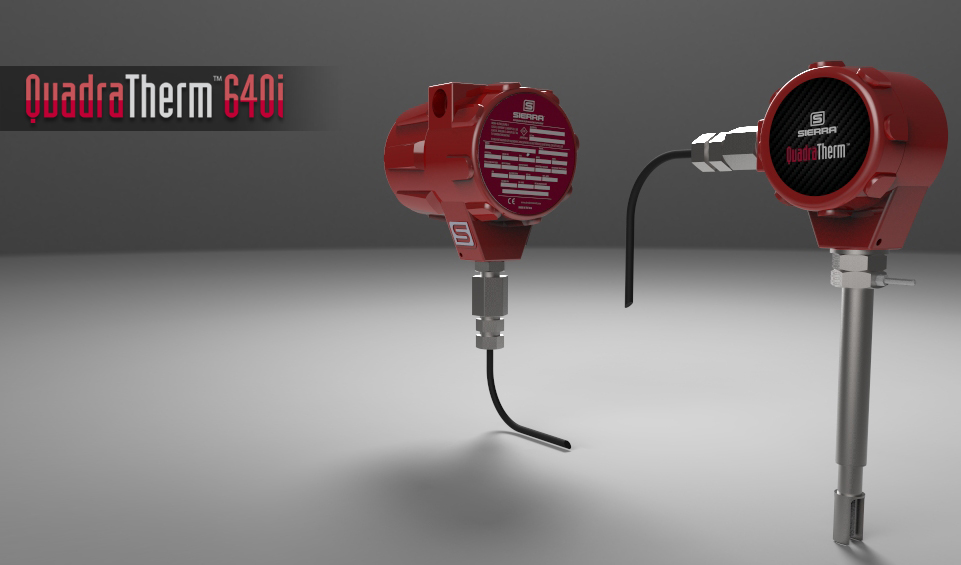

Large LCD display and pushbutton interface, remote enclosure mounting available
Multi-language display interface: English, German, Chinese, Spanish, Dutch
Certified for Boiler MACT measurement meeting EPA regulations for area source boilers (40 CFR 63, subpart JJJJJJ) and for major source boilers (40 CFR 63, subpart DDDDD) Learn More.
Meet EPA rule 40 CFR 63 for flare gas measurement at ultra-low flows down sfps (0.03 smps) with QuadraTherm qMix RealTime Flare Measurement System

Specifications

Accuracy: +/- 0.75% of reading above 50% of full scale*
Repeatability: +/- 0.15% of full scale
Flow range 0 to 60,000 sfpm (0 to 305 smps)
Turndown 100:1
Measure all inert gases and all non-condensing clean gases
Flammable gases: methane, propane, hydrogen, digester gas, natural gas
Corrosive gases compatible with 316L stainless steel
Gas Temperature: -40°F to 392°F (-40°C to 200°C)
Ambient temperature: -40°F to 140°F (-40°C to 60°C) / ATEX/IECEx Versions -4°F to 140°F (-20°C to 60°C)

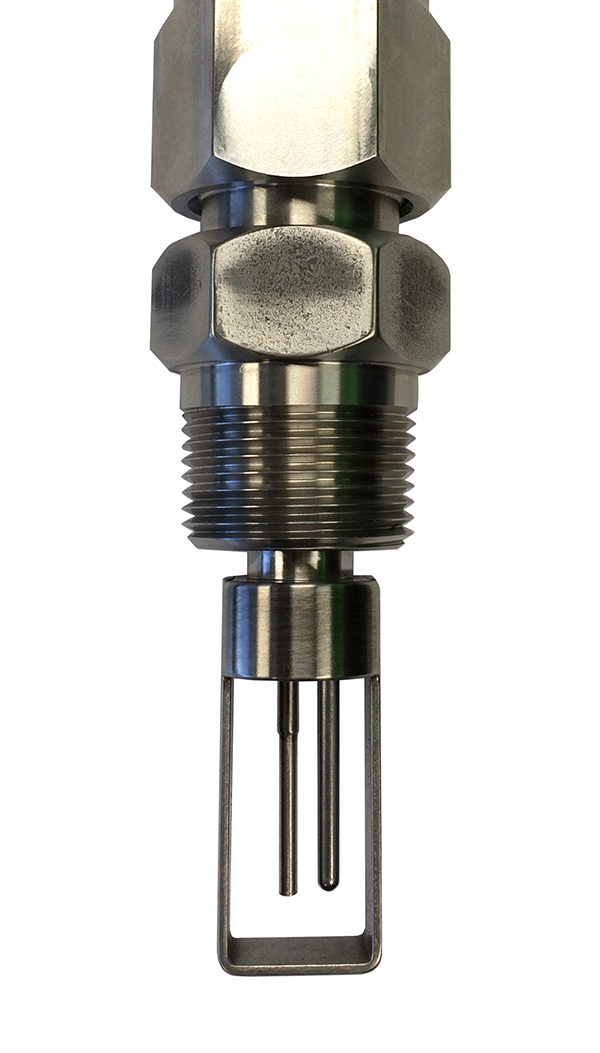

1-inch (25.4 mm) diameter protective sensor shield option for improved sensor protection. Learn more.

*Verified by an independent NIST & NVLAP accredited lab

View All Specs

Response time is three seconds to achieve 63% (one time constant) of final value
Power supply: 100 to 240 VAC (0.4 Amps RMS at 230 VAC); 24 VDC +/- 10%, 1 Amp
316 stainless steel construction
Output signals: RS-232, 4 to 20 mA flow, 4 to 20 mA temperature, 4 to 20 mA pressure (optional)
Alarm output (contact SPST/opto relays)
User definable pulse output for totalized flow
Digital communications: HART and Modbus RTU
Hazardous-Area Location Enclosure (IP66)
Approvals:
- cFMus–Explosion proof for Class I, Div I, Groups B,C,D
- ATEX
- IECEx
- GOST R
- Chinese Pattern
- CE–European Conformity
